1. pulse heating mode, because of different products, heating speed can be set up.
2. special material welding head to ensure that the product is pressed on average.
3. has the function of vacuum, it is more convenient to adjust the counterposition,rotating the feed by rotating double stations, and improving the working efficiency.
4. temperature numerical control, clear and precise, programmable curve including preheating and reflow welding temperature.
5. have digital display pressure switch, can presuppose pressure range, realize overvoltage protection function.
6.PLC control,
7 inch color touch screen LCD display input, real-time temperature curve display.
7. Chinese menu, all the parameter setting is simple and simple, and the operation is simplified.
8. and there is a password protection, system self inspection, fault alarm display function.
9.Microcomputer control, accurate and stable
10. programmable curves include preheating and reflow soldering temperature
11. suitable for high density TAB, TCP bonding and FPC, FFC and PCB welding
12. the vibration is small, the noise is low, and the voltage is not fluctuant.
13. head used to replace the traditional molybdenum alloy, titanium alloy, fast heating and cooling, heat transfer coefficient, corrosion resistance.
14. single head double fixture design, high efficiency, saving labor cost.

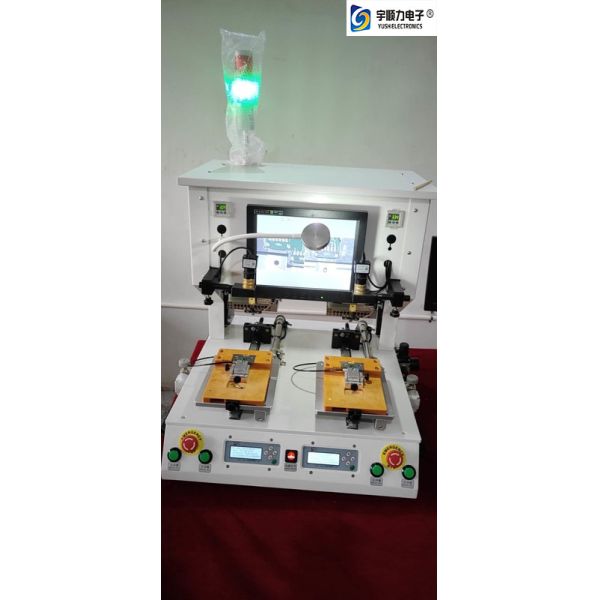

Touch screen pulse heat press specification:.
| working size: | 200 x 260mm |
| machine weight: | 110kg |
| working pressure, diameter: | 0.15-0.7Mpa compressed gas |
| power supply: | AC220V + 10% 50HZ, 2000W |
| heating settings: | two segment settings, 4 storage programs |
| working environment: | 10-60 centigrade, 40%-95% |
| welding pressure: | 1~50Kg |
| temperature setting: | room temperature ~500 C error + 5 C |
| hot pressing time: | 1~99s |
| hot pressing precision: | 0.05mm |
| hot press head size: | 90X5mm |
| opposite mode: | CCD+ liquid crystal display |
| feeding mode: | artificial extraction |
| starting mode: | hand press |
| machine size: | 700 x 800 x 950mm (length / width / height) |
| shape | desktop and erect. |
